Overview

This section contains information about the System-Architecture and the basic Workflow.

System-Architecture

../_images/diagramm.png

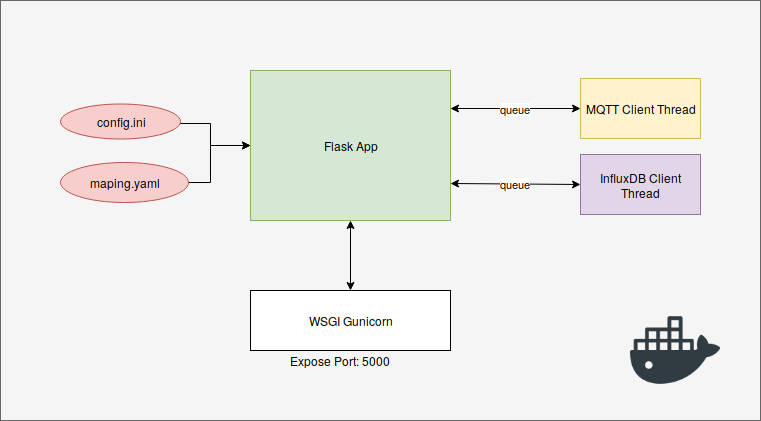

The Main Entry-Point starts an Flask Web Application and one thread for the MQTT-Client and another for InfluxDB-Client. To serve the Web-Application there also starts an Gunicorn Worker who acts as Web Service Gateway Interface (WSGI).

For the communication between these thread there are several Queue used:

  • sub_queue => To subscribe Topics
  • msg_queue => For all incoming messages
  • persistent_queue => For influxDB persistent manager
  • pub_queue => For all messages to publish

Workflow

../_images/uml_sequenz_diagram.png

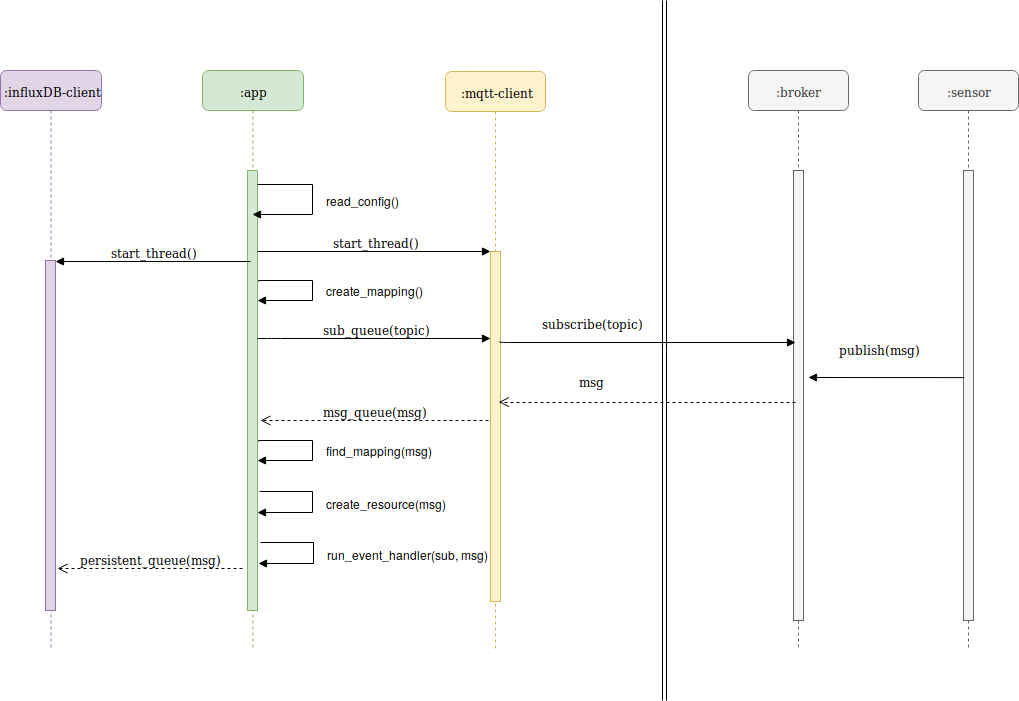

First the Main-Thread read all config files and start the different Client-threads. (APP_CONFIG_FILE)

After that it creates the Mapping Resources from kind “MQTTSubscriptionV1” and put all topics that should be subscribe in the sub_queue. (PRE_MAPPING_DIR)

The MQTT Client reads this queue and subscribe these Topics from the Broker.

If some Sensor-Client Publish a Message that match one of these Subscriptions, then the message will be forwarded to the Main-Thread by the msg_queue.

Then the Main-Thread search for a matching Resource and than update the corresponding value. If there is no resource than its create a new once.

In the last step the Main-Thread execute all defined event_handlers for this Subscription.
